Spiral blade forming machine operation steps
The spiral blade forming machine can process spiral blades of various specifications. The operation is simple and easy to learn.

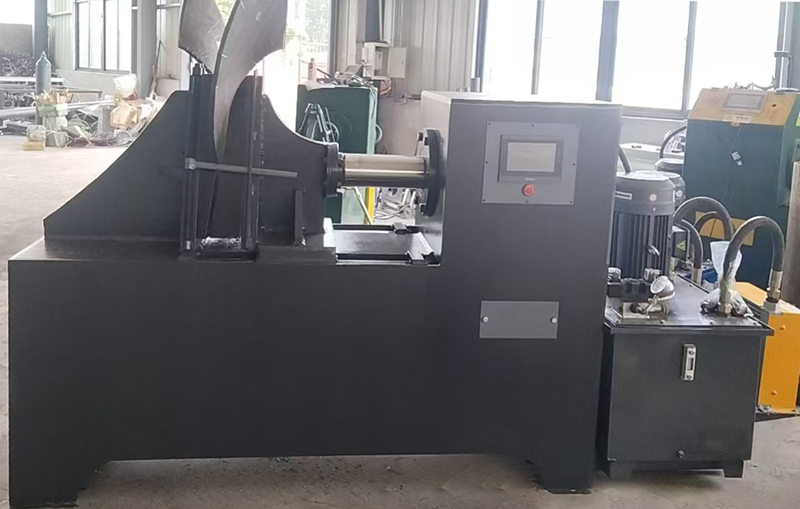

The conventional spiral blades can be completed independently by one person. The spiral blade forming machine consists of a hydraulic system, a mold device and a base. The main power source is the hydraulic system. The hydraulic system drives the mold to move repeatedly. The two molds interact with each other to form a spiral blade. The operation steps of the spiral blade forming machine are as follows.

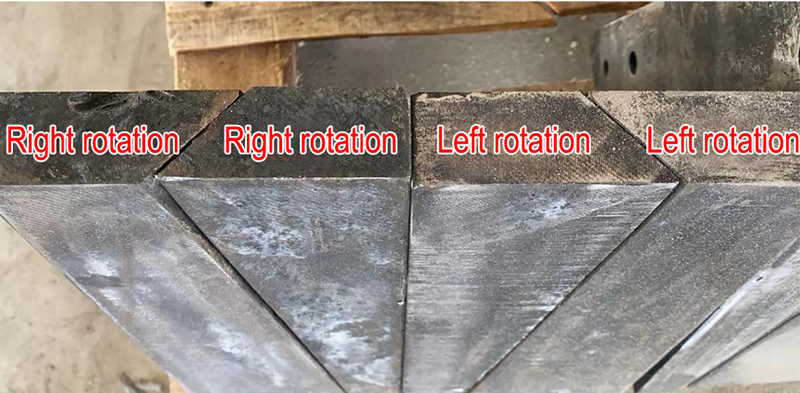

1. Select the spiral blade forming machine mold to be used, install it on the mold base, and adjust the upper position;

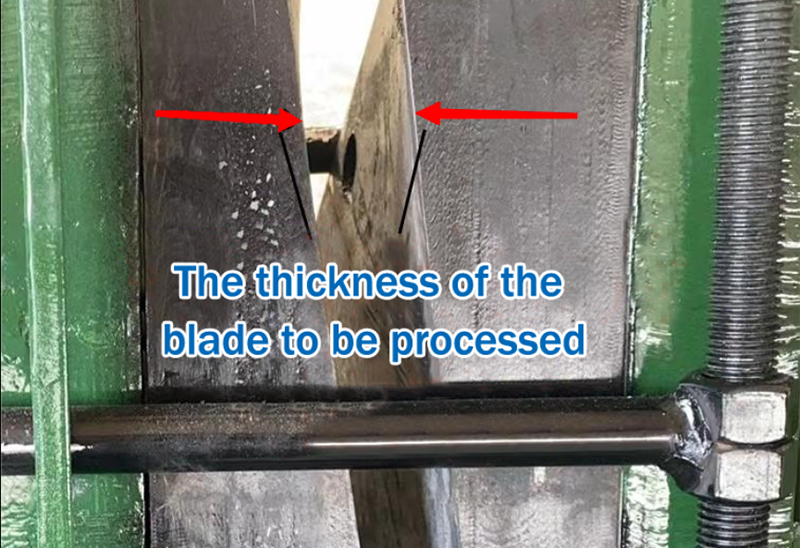

2. The spiral blade forming machine is powered on, and the movable mold seat is controlled to move forward and backward. According to the thickness of the processed blade, the distance between the two mold seats is adjusted;

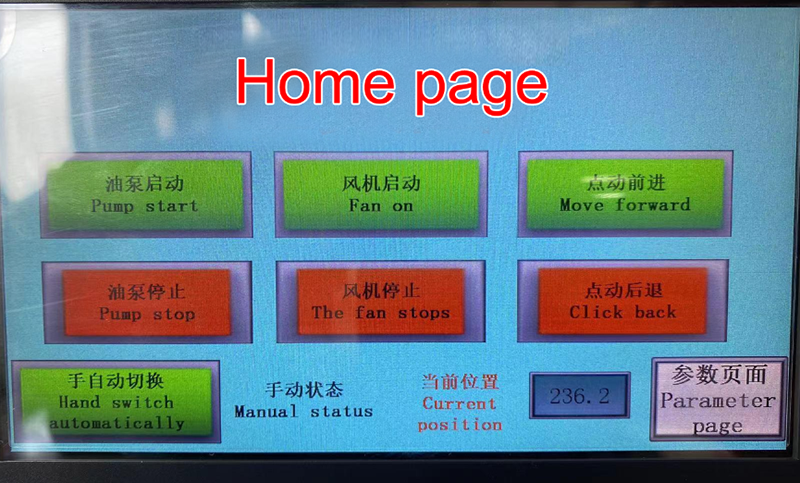

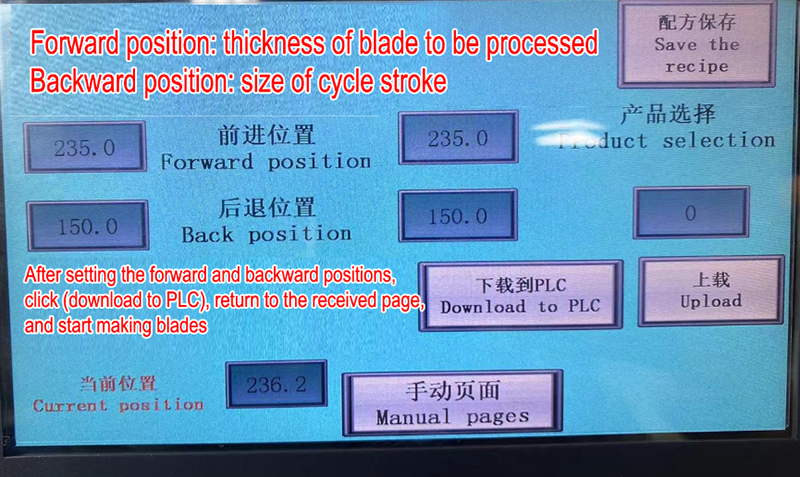

Set the forward and backward positions, click download to PLC, then click the received page and return to the home page.

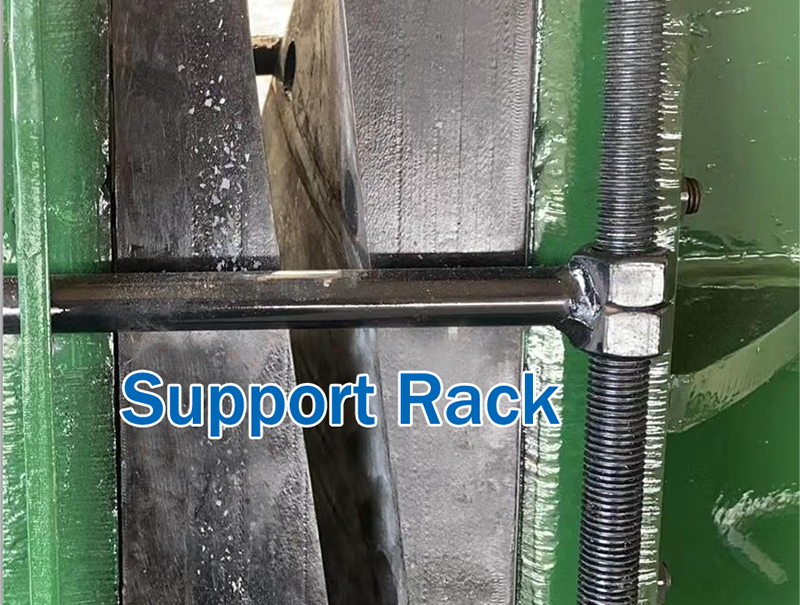

3. Put in the spiral blade with the material loaded, adjust the upper and lower support bars, and the spiral blade is in the middle of the mold.
4. ① Make the blade parallel to the end face of the mold ② Place the outer corner of the blade on the support ③ Make the indentation reach the center of the mold, and so on
5. The spiral blade forming machine is turned on and running. Each time it is extruded, the spiral blade is rotated once, so that the entire spiral blade is processed.
