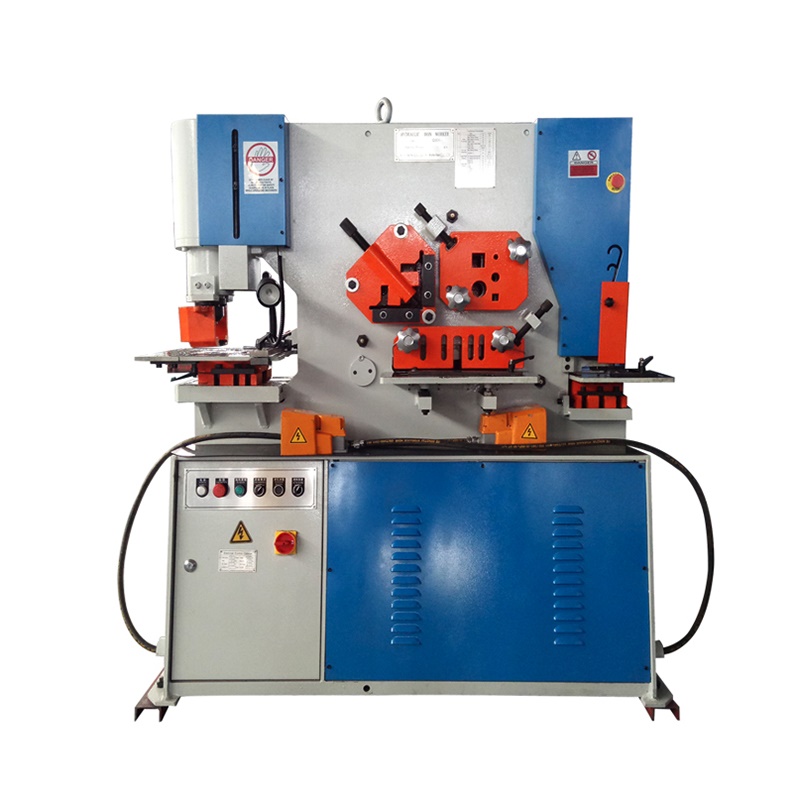

Q35Y Hydraulic iron worker
Product details
Performance characteristics

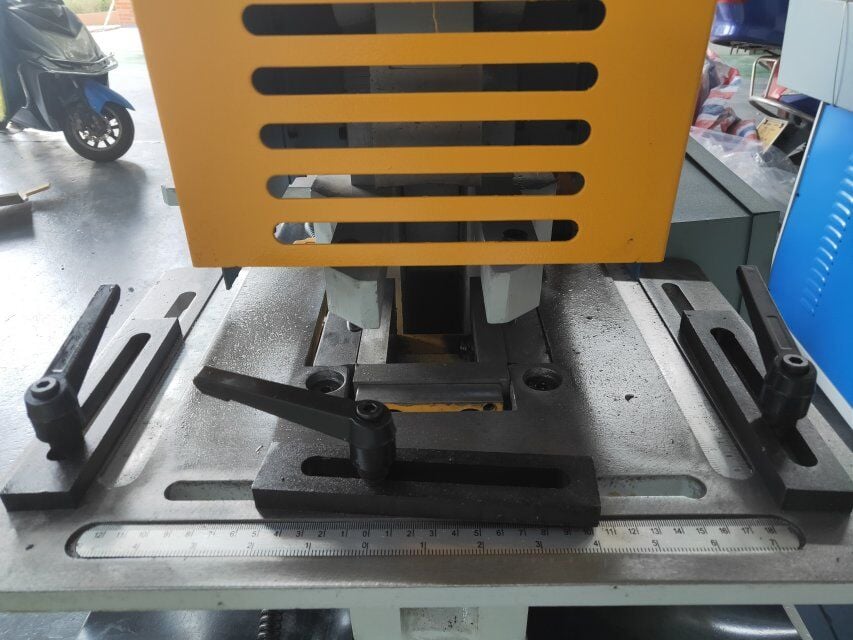

They adopt hydraulic driving system and they are the latest iron workers in our country,Various metal plate,squarebar,Round bar,angle,channel and joist can be cut,punched and notched on the machine.It is also equipped with a stop device for cutting.
Technical parameter
Model |
Q35Y-16 |
Q35Y-20 |
Q35Y-25 |
Q35Y-30 |
Q35Y-40 |
Q35Y-50 |
|
Processing Capacity (KN) |
600 |
900 |
1200 |
1600 |
2000 |
2500 |
|
Material Tensile Strength (Mpa) |
≤450 |
≤450 |
≤450 |
≤450 |
≤450 |
≤450 |
|
Flat Shearing |
Max. Shearing Capacity (thickness* width (mm) |
16×250 |
20×330 |
25×330 |
30×355 |
35×400 |
40×450 |
8×400 |
10×480 |
16×600 |
20×600 |
25×700 |
30×750 |
||
Bar Shearing |
Square Bar(mm) |
40 |
45 |
50 |
55 |
60 |
65 |
Round Bar (mm) |
45 |
50 |
60 |
65 |
70 |
80 |
|
C-channel (mm) |
126 |
160 |
200 |
280 |
300 |
320 |
|
I-beam (mm) |
126 |
160 |
200 |
280 |
300 |
320 |
|
Angle shearing |
90° shearing (mm) |
120×12 |
140×12 |
160×14 |
180×16 |
200X18 |
200×20 |
45° shearing (mm) |
70x8 |
70x10 |
80x7 |
80x10 |
80x10 |
80x10 |
|

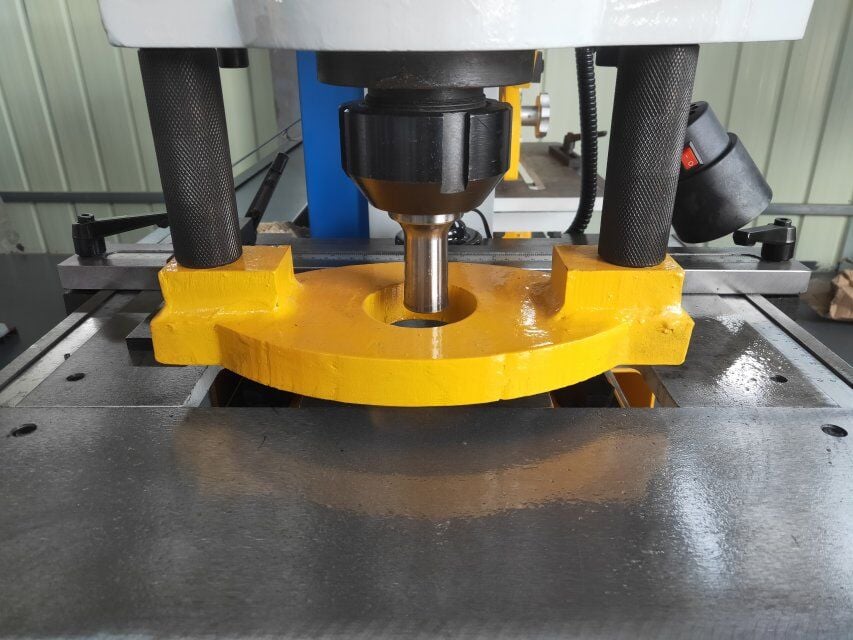

Hole Punching |
Max. Punching Capacity (diameter* thickness) (mm) |
Φ25*16 |
Φ30*20 |
Φ35*25 |
Φ38*26 |
Φ40*35 |
Φ40*40 |
Motor (KW) |
4 |
5.5 |
7.5 |
11 |
15 |
18.5 |
|
Dimension(mm) |
Length |
1650 |
1950 |
2350 |
2680 |
2800 |
3200 |
Width |
800 |
900 |
980 |
1060 |
1260 |
1440 |
|
Height |
1780 |
1930 |
2100 |
2380 |
2420 |
2450 |
|
Weight |
1800 |
2600 |
4400 |
6600 |
7500 |
10800 |
|
