Product details
Product Features
■ The machine body is welded by steel plate, with good rigidity and more stable precision
■ The crankshaft is placed vertically, with compact structure and beautiful appearance
■ The height of the mold can be adjusted electrically, and the height can be adjusted by digital display
■ The slider adopts a rectangular hexahedral elongated guide rail and a bronze lining board, which has high guiding accuracy

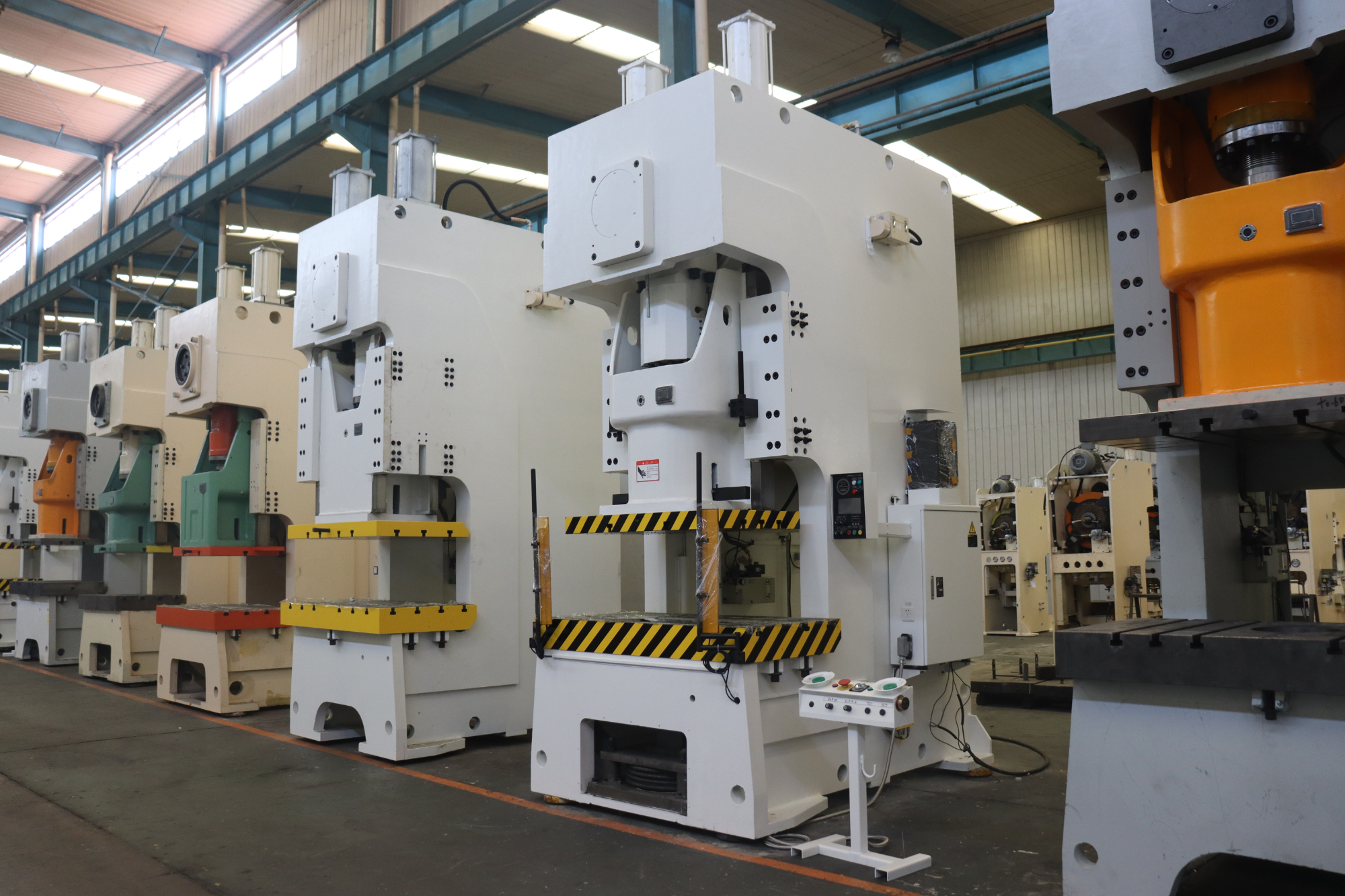

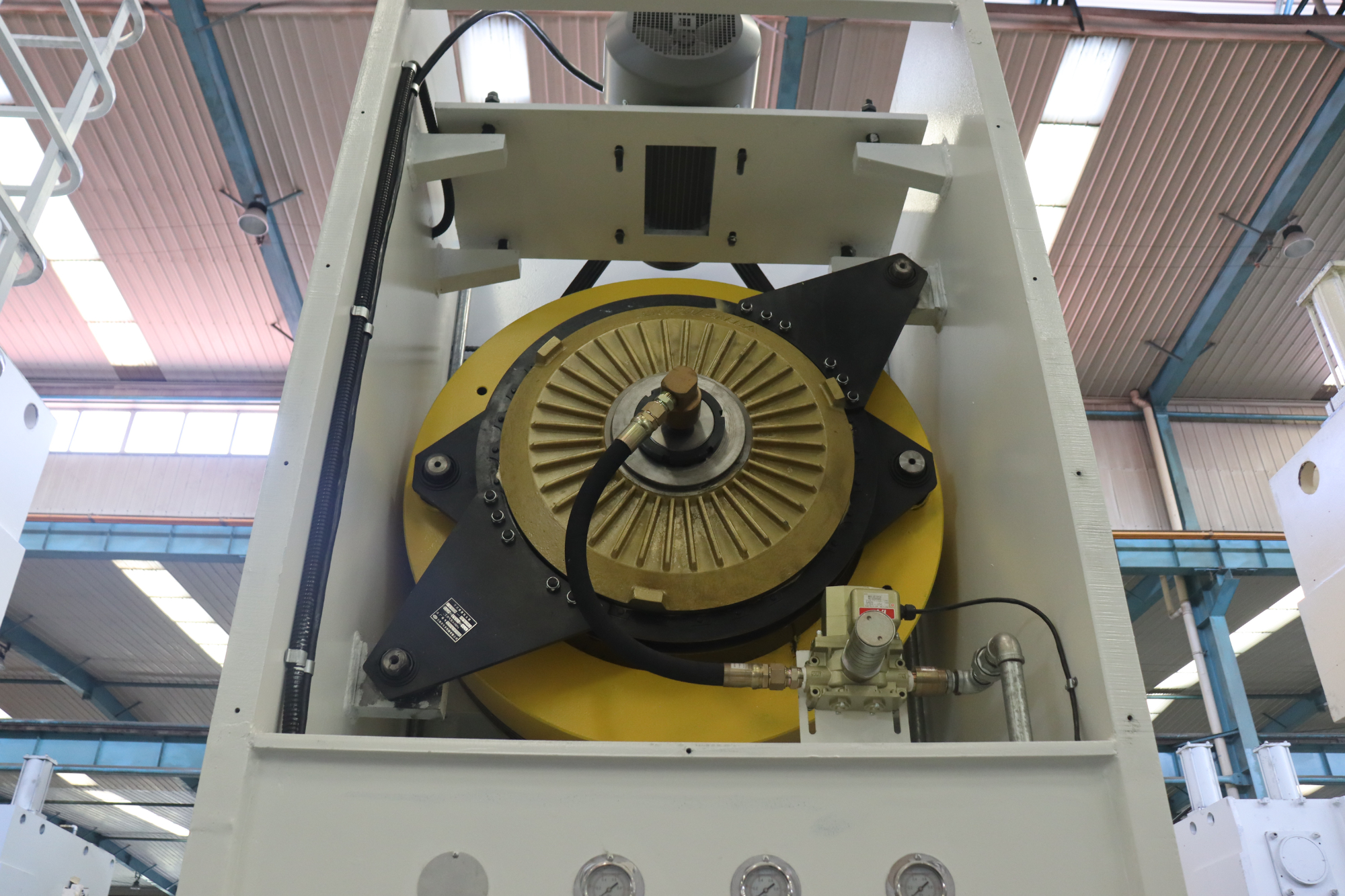

■ Adopt combined pneumatic friction clutch——brake, smooth engagement and sensitive action
■ Compression type safety device to ensure the safety of the whole machine when it is overloaded
■ The slider is equipped with a lifting balance cylinder to achieve the balance of the slider connecting rod

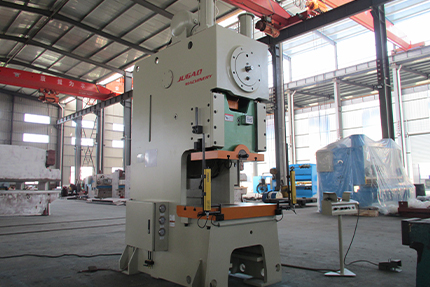

Technical parameter
JH21-25B |
JH21-25 |
JH21--45 |
JH21-63 |
JH21-80 |
JH21-110 |
JH21-125 |

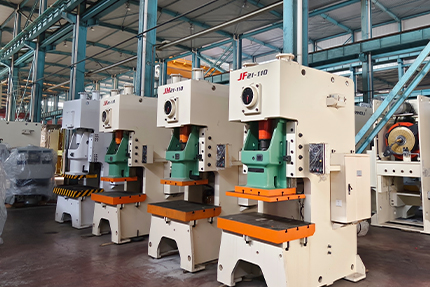

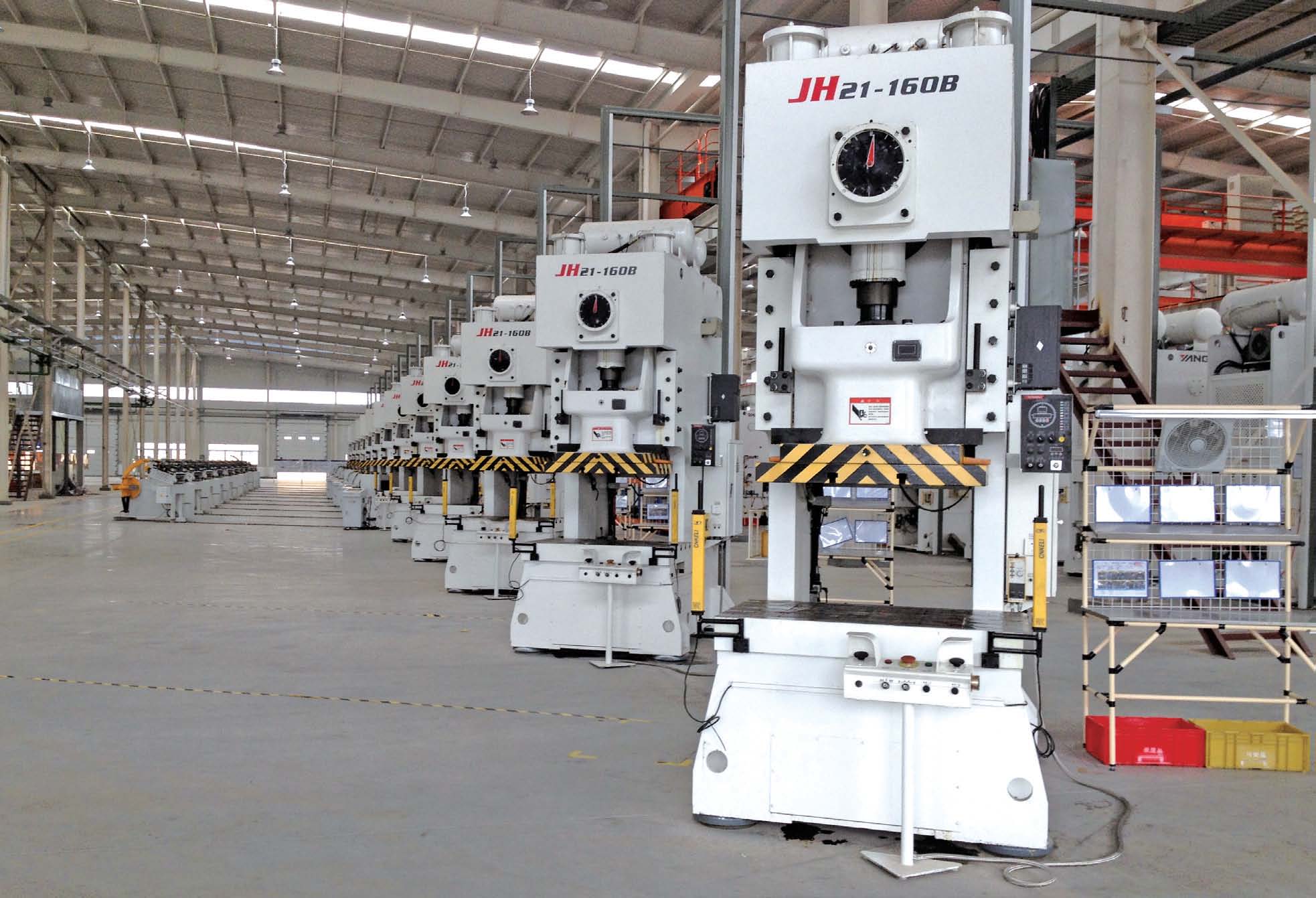

JH21-160B |
|||
Capacity |
kN |
250 |
250 |
450 |
630 |
800 |
1100 |
1250 |
1600 |
|
Nominal Stroke |
mm |
3 |
3 |
4 |
4 |
5 |
6 |
6 |
6 |
|
Slide Stroke |
mm |
60 |
80 |
100 |
120 |
140 |
160 |
160 |
160 |
|
SPM |
Fixed |
min-1 |
100 |
100 |
80 |
70 |
60 |
50 |
50 |
40 |
Variable |
80-120 |
80-120 |
70-90 |
60-80 |
50-70 |
40-60 |
40-60 |
35-50 |
||
Max. Die Height |
mm |
200 |
250 |
270 |
300 |
320 |
350 |
350 |
350 |
|
Die Height Adjustment |
mm |
50 |
50 |
60 |
80 |
80 |
80 |
80 |
110 |
|
Between Slide Center & Frame |
mm |
160 |
210 |
230 |
300 |
300 |
350 |
350 |
380 |
|
Bolster (FB×LR) |
mm |
300×680 |
400×700 |
440×810 |
580×900 |
580×1000 |
680×1150 |
680×1150 |
740×1300 |
|
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.) |
mm |
130×260 |
φ170×20 ×φ150 |
φ180×30 ×φ160 |
φ200×40 ×φ180 |
φ200×40 ×φ180 |
φ260×50 ×φ220 |
φ260×50 ×φ220 |
φ300×50 ×φ260 |
|
Bolster Thickness |
mm |
70 |
80 |
110 |
110 |
120 |
140 |
140 |
150 |
|
Bolster Opening (Dia./FB×LR) |
mm |
200×270 |
260×250 |
300×300 |
390×460 |
390×520 |
420×540 |
420×540 |
φ470 |
|
Slide Area (FB×LR) |
mm |
270×330 |
300×360 |
340×410 |
400×480 |
420×560 |
500×650 |
540×680 |
580×770 |
|
Shank Hole (Dia.×Dpth) |
mm |
φ40×60 |
φ40×60 |
φ40×60 |
φ50×80 |
φ50×80 |
φ60×80 |
φ60×80 |
φ65×85 |
|
Between Columns |
mm |
448 |
450 |
550 |
560 |
640 |
760 |
760 |
850 |
|
Main Motor Power |
kW |
3 |
3 |
5.5 |
5.5 |
7.5 |
11 |
11 |
15 |
|
Outline Size (FB×LR×H) |
mm |
1150×1050 ×2050 |
1300×1050 ×2050 |
1390×1200 ×2400 |
1580×1210 ×2520 |
1640×1280 ×2700 |
1850×1450 ×3060 |
1850×1490 ×3060 |
2280×1550 ×3240 |
|
