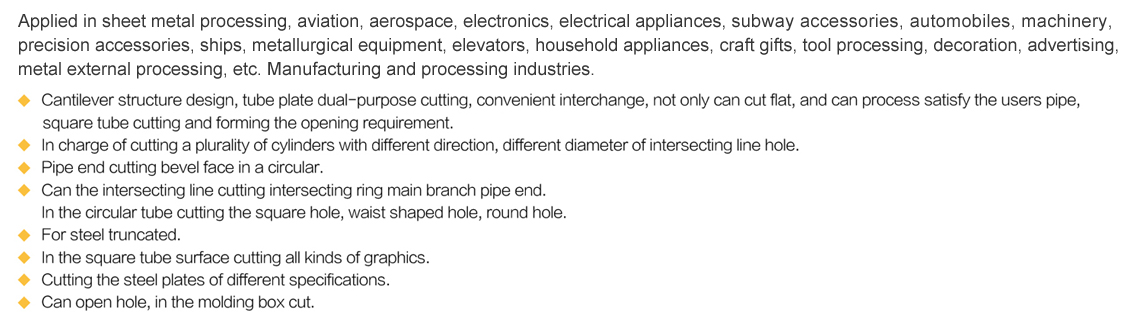

Product Features
Cutting sample display
Technical parameter
| 设备型号/Mode No | JY-3015A/P30 | JY-4020A/P60 | JY-3015C/P30 | JY-4020C/P60 |
| 激光功率/Laser Power | 500W-2000W | 500W-2000W | 700W-3000W | 700W-3000W |
| 加工幅面/Working Pange | 3000mmx1500mm 20-150mmx3000mm 20*20 100*100mmx3000mm | 4000mmx2000mm 20-150mmx6000mm 20*20 100*100mmx6000mm | 3000mmx1500mm 20-150mmx3000mm | 4000mmx2000mm 20-150mmx6000mm 20*20 100*100mmx6000mm |
| 20*20 100*100mmx3000mm | ||||
| Y1轴行程/Y1 Axis track | 3050mm | 4050mm | 3050mm | 4050mm |
| Y2轴行程/Y2 Axis track | 3200mm | 6200mm | 3200mm | 6200mm |
| X轴行程/XAxis track | 2825mm | 3325mm | 2825mm | 3325mm |
| W轴行程/W Axis track | 无限回转 | 无限回转 | 无限回转 | 无限回转 |
| Z轴行程/Z Axis track | 270mm | 270mm | 270mm | 270mm |
| X/Y1/Y2轴重复定位精度/Y Axis accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| X/Y1/Y2轴最大加速度/Y Axis max. acceleration | 0.8G | 0.8G | 1.2G | 1.2G |
| X/Y1/Y2轴最大定位速度/Y Axis max.Speed | 80m/min | 80m/min | 100m/min | 100m/min |
| 工作台最大载重/Max.load of worktable | 0.8T | 1T | 0.8T | 1T |
| 管料工作台最大载重/Max.load ofpipe worktable | 0.1T | 0.2T | 0.1T | 0.2T |
| 整机重量/Net Weight | 5.3T | 7.5T | 7T | 10T |
| 整机外形尺寸(长X宽X高)/Dimension(LxWxH) | 5000mmx3700mmx1600mm | 9000mmx4200mmx1600mm | 8300mmx3700mmx1600mm | 10300mmx4200mmx1600mm |
