The 8+1 axis CNC bending machine is a highly advanced sheet metal forming equipment. This bending machine is equipped with a powerful CNC system that can precisely control the movement of each axis to achieve high-precision bending of metal sheets，During the processing, you only need to input the corresponding processing program through programming, and the equipment can automatically complete all actions, such as positioning, clamping, bending, etc., which greatly improves processing efficiency.
CONTROLLER
Customize The Controller For YourPress Brake

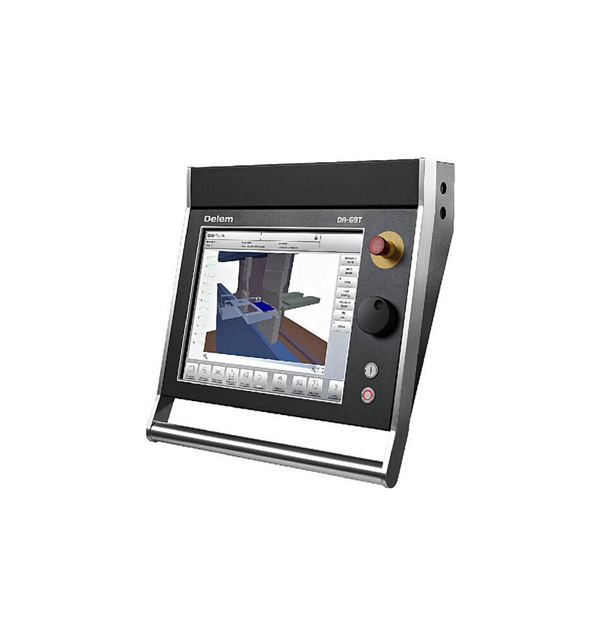

DA-66T Controller
The DA-66T offers 2D programming that includes automatic bend sequence calculation andcollision detection. Full 3D machine set-up with multiple tool stations giving true feedback onthe product feasibility and handling.
The application of the offline software on the JUGAO press brake machines allows theoperator to program offline on a remote computer and then actually produce on the press brake
Crowning System
The crowning system on the JUGAO press brake enables to offset the possible deformations automatically while bending. And the bending angle is constant along the entire workpiece.
Press brake ram synchronization control
Y1,Y2 axes are two independent CNC axes of two oil cylinders. The linear scale will measure the distance between ram and worktable.Its data will feed back to the control, and after close-loop calculation the servo valve signals S1 and S2 are output to control the output flow of two servo valves.

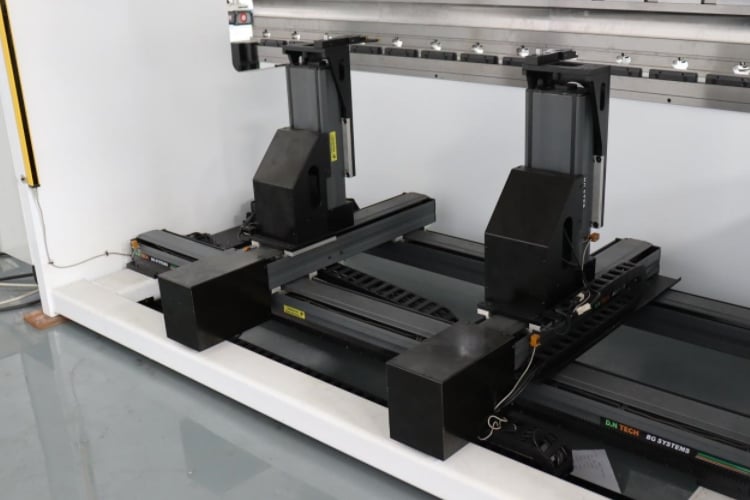

CNC Backgauge
Up to 8-axis controlling CNC backgauge guarantees the flexible bending as customers’ requirements. High accuracy with precision ball screws and linear guide.Supports Y1Y2, The Y1Y2 axis is responsible for controlling the bending angle and shape to achieve the bending of workpieces with different cross-sectional shapes. The R1R2 axis is used to adjust the working height of the bending machine, and the Z1Z2 axis is used to position the plate width to adapt to metal plates of different widths.

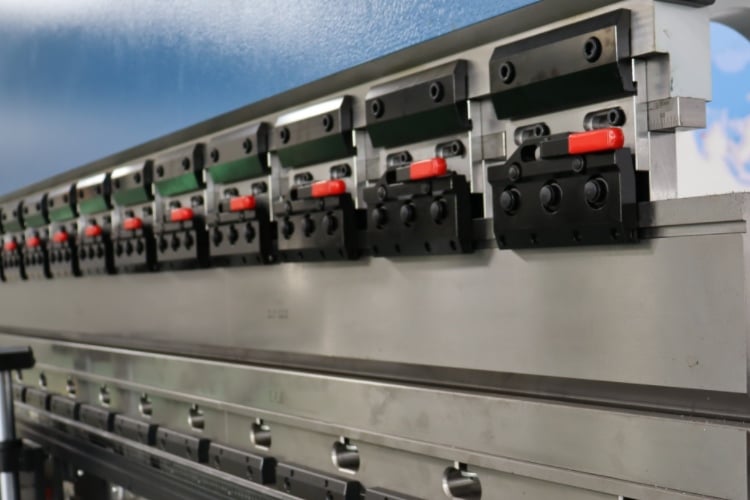

One-key Release Fast Clamp
The one-key release fast clamp could ensure the safe and fast punch changing, with strict quality requirements and procurement standards of raw materials, which keeps the punch from falling out.

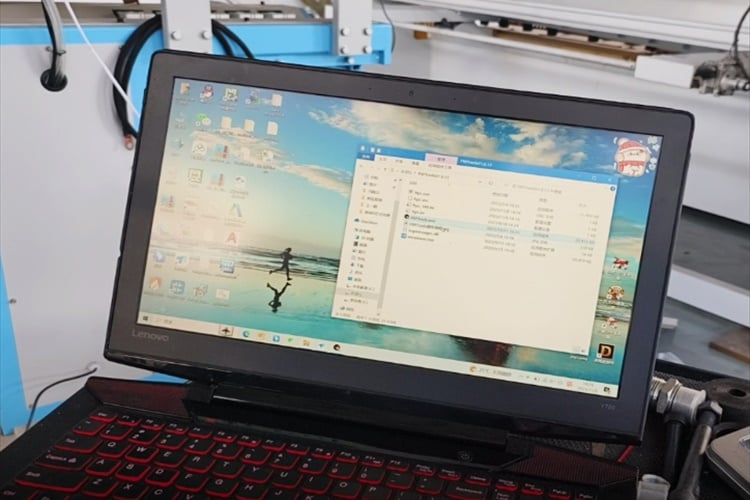

Offline Software
The Profile-T3D software makes possible the offline programming and simulation of the bending process. It is software on any remote computer and it maximizes the efficiency and production output of the JUGAO press brake.
Multifunctional Pedal Switch
JUGAO has upgraded the pedal switch to a new generation, with a single switch design, front-mounted rollers, emergency stop switch, and return button, all for easier and smarter operation.
Safety Light Curtain
The light curtain, JUGAO chooses is from the well-known brands, with perfect performance to offer a highly effective solution for both operator safety and machine productivity.
